tempusSystem Class DIntegratorVF
DIntegratorVF is part of the WaveTrain system class library

Implement a discrete integrator on a two-vector using the discrete transfer function approach.

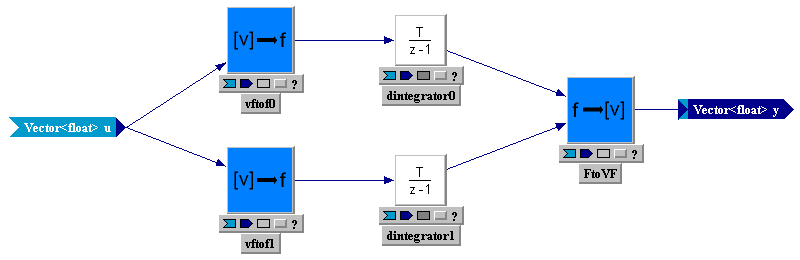

Tempus Block Diagram Editor Snapshot
Parameters
sampleTime  double   Time interval between samples in seconds   1
priority  int   Execution priority   0
Inputs
u  Vector<float>   Input Vector   Vector()
Outputs
y  Vector<float>   Output Vector
Subsystems

Subsystem icon
  FtoVF    ftovf

Subsystem icon
  VFtoF    vftof0

Subsystem icon
  DIntegratorF    dintegrator0
sampleTime  double   sampleTime
priority  int   priority

Subsystem icon
  DIntegratorF    dintegrator1
sampleTime  double   sampleTime
priority  int   priority

Subsystem icon
  VFtoF    vftof1


Connections
vftof0.v  <<=  u
vftof1.v  <<=  u
y  <<=  ftovf.vout
ftovf.f1  <<=  dintegrator1.y
ftovf.f0  <<=  dintegrator0.y
dintegrator0.u  <<=  vftof0.fout
dintegrator1.u  <<=  vftof1.fout
Last Saved: Thu Jul 19 22:23:30 MDT 2001 by TVE version 2007B
