Scale and sum two floating point values.

Parameters
None
Inputs
f1	float	Input float 1	TNANQ
f2	float	Input float 2	TNANQ
s1	float	Factor by which f1 is to be multiplied	+1.0
s2	float	Factor by which f2 is to be multiplied	+1.0
Outputs
sum	float	Output float

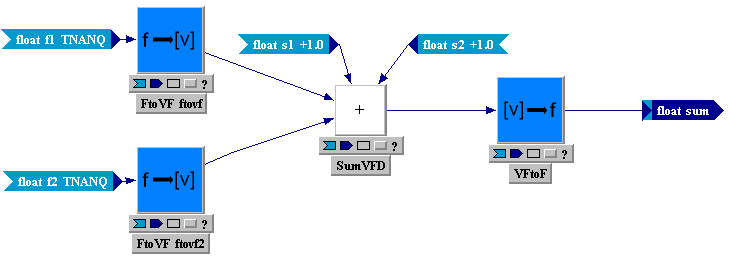

Subsystems
VFtoF    vftof   FtoVF    ftovf   SumVFD    sumvfd   FtoVF    ftovf2 Connections ftovf.f0   <<=   f1 ftovf2.f0   <<=   f2 sumvfd.s1   <<=   s1 sumvfd.s2   <<=   s2 sum   <<=   vftof.fout sumvfd.v1   <<=   ftovf.vout sumvfd.v2   <<=   ftovf2.vout vftof.v   <<=   sumvfd.vout
Last Saved: Thu Feb 07 15:22:57 MST 2008 by TVE version 2007B
