AtmoPath models optical propagation through atmospheric turbulence. The atmosphere is modeled using multiple "phase screens", typically 5-20, distributed along the propagation path. Each phase screen represents the cumulative optical path differences for a slab of atmosphere, and in between phase screens we perform vacuum propagations, using a two-step FFT propagator. The details of the path model (number and placement of screens, turbulence strengths, inner scale, etc.) are specified by "atmosphere specification" (an object of type AcsAtmSpec). Atmosphere specifications can be created using TurbTool, and for certain common cases (e.g. uniformed turbulence, or scaled Clear1) we have also provided a more convenient function call interface. The dimensions of each phase screen dimensions are controlled by a user-defined bounding rectangle for the region of interest at each end of the propagation path. If the specified bounds should be exceeded, each screen will be "scrolled" as necessary. AtmoPath is a composite system class, consisting of a GeneralAtmosphere and two PropagationControllers, and provides a simplified interface for propagation modeling options, which assumes that the same modeling options will be used in both propagation directions, including using planar reference waves and the defaults for point source and speckle modeling, with no spatial filtering or absorbing boundaries. If this is not what is desired, the user may wish to work with GeneralAtmosphere and PropagationController directly.

Parameters
acsSpec	AcsAtmSpec	specifies all the properties of the atmospheric path model: range, turbulence distribution, number of phase screens, etc.
mtbSpec	MtbAtmSpec	specifies thermal blooming properties
atmoSeed	int	random number seed for atmospheric phase screens	-123456789
propnxy	int	propagation mesh dimension (for both x & y)	512
propdxy	float	propagation mesh spacing (for both x & y)	.01
superApDiameter	float	used in modeling point sources and surface speckle; defines a circular region at the aperture plane which in vacuum would be uniformly illuminated	1.8
edgeSigma	float	used in modeling point sources and surface speckle; defines a gaussian round odd at the edge of the superaperture	0.05
xp1	float	used to define phase screen extents; defines lower bound in x at "platform" (z=0) end of propagation path
xp2	float	used to define phase screen extents; defines upper bound in x at "platform" (z=0) end of propagation path
yp1	float	used to define phase screen extents; defines lower bound in y at "platform" (z=0) end of propagation path
yp2	float	used to define phase screen extents; defines upper bound in y at "platform" (z=0) end of propagation path
xt1	float	used to define phase screen extents; defines lower bound in x at "target" (z=range) end of propagation path
xt2	float	used to define phase screen extents; defines upper bound in x at "target" (z=range) end of propagation path
yt1	float	used to define phase screen extents; defines lower bound in y at "target" (z=range) end of propagation path
yt2	float	used to define phase screen extents; defines upper bound in y at "target" (z=range) end of propagation path
screenDxy	float	phase screen mesh spacing
xReferenceFocus	float	used to define propagation geometry; set to zero for plane wave propagation.	0.0
yReferenceFocus	float	used to define propagation geometry; set to zero for plane wave propagation. (ignored at present)	0.0
locFlag	int		0
useDispersion	bool	use atmospheric dispersion calculations	false
nominalWavelength	float	nominal wavelength (m) for dispersion calculations	0.0
Inputs
incomingIncident	WaveTrain	describes all light incident from the "incoming" direction	WaveTrain()
outgoingIncident	WaveTrain	describes all light incident from the "outgoing" direction	WaveTrain()
Outputs
incomingTransmitted	WaveTrain	describes all light transmitted in the "incoming" direction
outgoingTransmitted	WaveTrain	describes all light transmitted in the "outgoing" direction
Subsystems

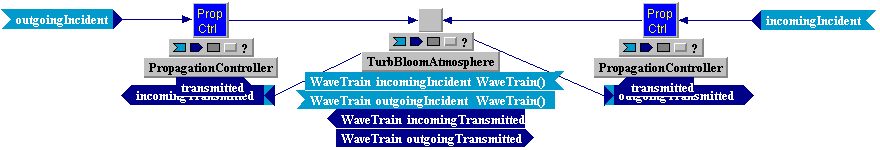

PropagationController    propagationcontroller2 targetGrid   GridGeometry    grid_with_origin_on_mesh(propnxy,propnxy,propdxy,propdxy) xReferenceFocus   float    -xReferenceFocus yReferenceFocus   float    -yReferenceFocus oneTimeSpatialFilter   constFilter&    NullFilter() spatialFilter   constFilter&    NullFilter() absorbingBoundary   constFilter&    NullFilter() pointSourceModel   PointSourceModel    DEFAULT_PSM speckleModel   SpeckleModel    DEFAULT_SM superApDiameter   float    superApDiameter edgeSigma   float    edgeSigma useDispersion   bool    useDispersion nominalWavelength   float    nominalWavelength   PropagationController    propagationcontroller targetGrid   GridGeometry    grid_with_origin_on_mesh(propnxy,propnxy,propdxy,propdxy) xReferenceFocus   float    xReferenceFocus yReferenceFocus   float    yReferenceFocus oneTimeSpatialFilter   constFilter&    NullFilter() spatialFilter   constFilter&    NullFilter() absorbingBoundary   constFilter&    NullFilter() pointSourceModel   PointSourceModel    DEFAULT_PSM speckleModel   SpeckleModel    DEFAULT_SM superApDiameter   float    superApDiameter edgeSigma   float    edgeSigma useDispersion   bool    useDispersion nominalWavelength   float    nominalWavelength   TurbBloomAtmosphere    generalatmosphere acsSpec   AcsAtmSpec    acsSpec mtbSpec   MtbAtmSpec    mtbSpec randomSeed   int    atmoSeed regionPlatform   RectangularRegion    RectangularRegion(xp1,xp2,yp1,yp2) regionTarget   RectangularRegion    RectangularRegion(xt1,xt2,yt1,yt2) dxy   float    screenDxy locFlag   int    locFlag Connections propagationcontroller2.incident   <<=   incomingIncident propagationcontroller.incident   <<=   outgoingIncident incomingTransmitted   <<=   generalatmosphere.incomingTransmitted outgoingTransmitted   <<=   generalatmosphere.outgoingTransmitted generalatmosphere.outgoingIncident   <<=   propagationcontroller.transmitted generalatmosphere.incomingIncident   <<=   propagationcontroller2.transmitted
