AddPhaseScreen is part of the WaveTrain system class library.
|
|
Parameters
|
| dxyPhaseScreen | float | Mesh spacing of input phase screen | 15e-6 |
| nxPhaseScreen | int | X dimension of phase screen region on lcField in pixels | 256 |
| nyPhaseScreen | int | Y dimension of phase screen region on lcField in pixels | 256 |
|

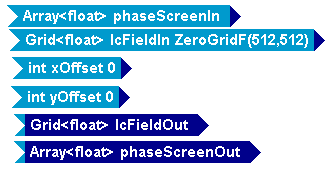

Inputs
|
| phaseScreenIn | Array<float> | Input phase screen array | |
| xOffset | int | X offset of phase screen on LC output in pixels | 0 |
| yOffset | int | Y offset of phase screen on LC output in pixels | 0 |
| lcFieldIn | Grid<float> | | ZeroGridF(512,512) |
|
Outputs
|
| phaseScreenOut | Array<float> | Copy of input phase screen | |
| lcFieldOut | Grid<float> | Input field combined with phase screen | |
|
Subsystems |
|
|
|
|
Last Saved: Thu Apr 28 10:32:47 MDT 2005 by TVE version 2009B
|
|
