Moments is part of the WaveTrain system class library.
This component calculates the first-moment (centroid) and second-moment widths (Intensity map standard deviation) of a beam. In the case of a Complex input, the calculations are done on the magnitude (e.g. the real amplitude) of the input.
|
|
Parameters
|
| threshold | float | Relative Threshold (0 to 1) | 0.001f |
|

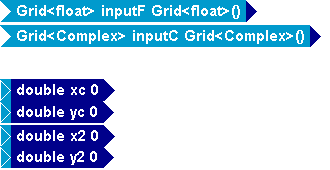

Inputs
|
| inputF | Grid<float> | | Grid() |
| inputC | Grid<Complex> | | Grid() |
|
Outputs
|
| xc | double | X Centroid | 0 |
| yc | double | Y Centroid | 0 |
| x2 | double | X Second Moment Width | 0 |
| y2 | double | Y Second Moment Width | 0 |
|
Subsystems |
|
|
|
|
Last Saved: Mon May 05 15:21:55 MDT 2008 by TVE version 2009B
|
|
