tempus System Class SwitchSplitterVF
SwitchSplitterVF is part of the WaveTrain system class library.

Component to do the opposite of SwitchVF. NOTE: THIS ONLY WORK FOR CONNECTING TO INPUT DRIVEN SYSTEMS.

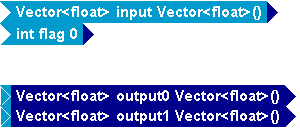

Tempus Block Diagram Editor Snapshot
Parameters
None
Inputs
input  Vector<float>   Vector Input   Vector()
flag  int   Selection Flag   0
Outputs
output0  Vector<float>   Vector output when flag is 0. Vector()
output1  Vector<float>   Vector output when flag is 1. Vector()
Subsystems


Last Saved: Wed Aug 17 10:38:16 MDT 2005 by TVE version 2009B
