AlignmentSensor is a special tilt sensor meant to be used in modeling an alignment system. In general, it measures the tilts in the tilt register plus the effective tilts in the field. The position of the beam is ignored, but is reported in centers. If there are multiple beams, the tilt and center measurement may intensity weighted. The fundamental output is, when useRegisterTilts is true, the average of the sum of the tilt registers of all incident Waves plus, when useFieldTilts is true, the tilts apparent in the complex fields of any incident Waves originating from an AlignmentLaser.

Parameters
minWavelength	float	Minimum wavelength sensed (m)	1.0e-06
maxWavelength	float	Maximum wavelength sensed (m)	1.0e-06
useTilts	bool	Flag indicating that register tilts are to be included	true
useField	bool	Flag indicating that field tilts are to be included	true
intensityWeighted	bool	Flag indicating whether the output should be intensity weighted.	false
seriesLength	int	Length of series of Waves for which individual results should be reported. This has the side-effect that it makes the tilts and centers output vectors be 2*(seriesLength+1) long and the intensity output 2*(seriesLength+1)	0
computationalLag	double	Delay between when exposure is made and measurement becomes available (s)	0.0

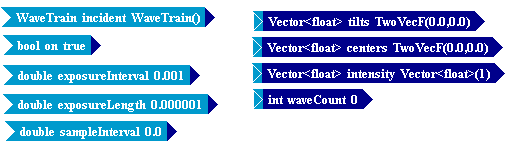

Inputs
incident	WaveTrain	Incident alignment beams	WaveTrain()
on	bool	On/off switch	true
exposureInterval	double	Amount of time between exposures (s)	0.001
exposureLength	double	Length of time of each exposure (s)	0.000001
sampleInterval	double	Amount of time between sub-exposure samples (s)	0.0
Outputs
tilts	Vector<float>	Average tilts of incident waves, followed by individual x-y tilt pairs if seriesLength>0 (rad)	TwoVecF(0.0,0.0)
centers	Vector<float>	Average centers of incident waves, followed by individual x-y center pairs if seriesLength>0 (m)	TwoVecF(0.0,0.0)
intensity	Vector<float>	Total intensity incident, followed by individual intensities (W)	Vector(1)
waveCount	int	Number of waves used to compute the measurement.	0
Subsystems
