BeamSteeringMirror_dmk models both the mechanical dynamics and the optical effects (applied tilts) of a beam steering mirror. The mirror is modeled as a two-axis damped harmonic oscillator (not necessarily critically damped). Tilt is given in radians of optical tilt, equal to twice the tilt of the mirror surface. Tilts applied to the reference wavefront, as opposed to putting them into the complex field. An idealized tilt sensor (actually just a delay) measures the optical tilts and makes them available as an output

Parameters
timeLimit	double	Maximum amount of time that recallable outputs must be kept (if zero, then forever) (s)	0.0
dtilt	float	damping coefficient (m*xdotdot + d*xdot + k*x =c, where x = actuator position, c= actuator command)	2.0 * timeConstant
mtilt	float	mass (m*xdotdot + d*xdot + k*x =c, where x = actuator position, c= actuator command)	pow(timeConstant,2.0)
ktilt	float	spring constant (m*xdotdot + d*xdot + k*x =c, where x = actuator position, c= actuator command)	1.0
pos0	Vector<float>	Initial position	Vector()
vel0	Vector<float>	Initial velocity	Vector()
acc0	Vector<float>	Initial acceleration (command)	Vector()
Inputs
incomingIncident	WaveTrain	describes all light incident from the "incoming" direction	WaveTrain()
outgoingIncident	WaveTrain	describes all light incident from the "outgoing" direction	WaveTrain()
tiltCommands	Vector<float>	tilt commands (radians)	ZeroVecF(2)
Outputs
incomingTransmitted	WaveTrain	describes all light transmitted in the "incoming" direction
outgoingTransmitted	WaveTrain	describes all light transmitted in the "outgoing" direction
measuredTilts	Vector<float>	measured tilts (radians) (from an ideal pickoff sensor)
Subsystems

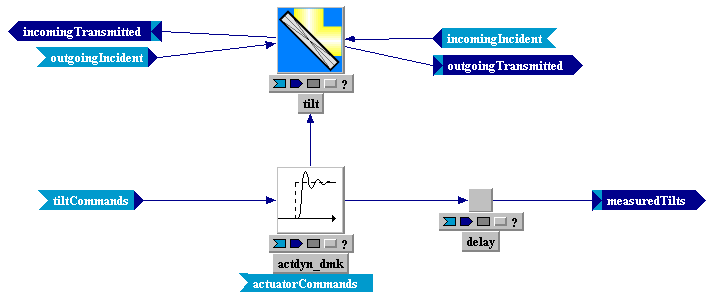

ActuatorDynamics_dmk    actdyn_dmk nact   int    2 d   float    dtilt m   float    mtilt k   float    ktilt timeLimit   double    timeLimit pos0   Vector<float>    pos0 vel0   Vector<float>    vel0 acc0   Vector<float>    acc0   Tilt    tilt applyToField   bool    false   Delay    delay delay   float    1.0e-10f Connections tilt.incomingIncident   <<=   incomingIncident tilt.outgoingIncident   <<=   outgoingIncident actdyn_dmk.actuatorCommands   <<=   tiltCommands incomingTransmitted   <<=   tilt.incomingTransmitted outgoingTransmitted   <<=   tilt.outgoingTransmitted measuredTilts   <<=   delay.delayedVector tilt.tilt   <<=   actdyn_dmk.actuatorPositions delay.recallableVector   <<=   actdyn_dmk.actuatorPositions
Last Saved: Tue Sep 03 21:04:59 MDT 2002 by TVE version 2007B
