CoherentMultiUniformSource models an optically rough reflector illuminated by multiple uniform intensity plane waves with specified tilts. It is a composite system, containing two subsystems, a MultiUniformWave and a CoherentTarget. It has a single WaveTrain output, representing the transmitted light.

Parameters
minWavelength	float	Minimum wavelength (m)	1.0e-06
maxWavelength	float	Maximum wavelength (m)	1.0e-06
irradiance	float	Irradiance (W/(m^2))	1.0
xTilt	Vector<float>&	The x-tilt to be applied to each beam (rad).	Vector()
yTilt	Vector<float>&	The y-tilt to be applied to each beam (rad).	Vector()
reflectance	Grid<float>&	Reflectance map.	reflectance
iseed	int	Random seed for roughness profile.	iseed
meanRoughness	float	Mean roughness (m)	meanRoughness
Inputs
None
Outputs
transmitted	WaveTrain	Transmitted WaveTrain
phase	Grid<float>	Randomized roughness (m)
Subsystems

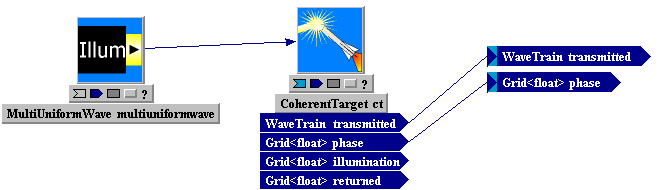

CoherentTarget    ct reflectance   Grid<float>    Grid() iseed   int    iseed meanRoughness   float    meanRoughness   MultiUniformWave    multiuniformwave minWavelength   float    minWavelength maxWavelength   float    maxWavelength irradiance   float    irradiance xTilt   Vector<float>&    xTilt yTilt   Vector<float>&    yTilt Connections phase   <<=   ct.phase transmitted   <<=   ct.transmitted ct.incident   <<=   multiuniformwave.transmitted
Last Saved: Fri Feb 18 13:16:53 MST 2000 by TVE version 2007B
