tempusSystem Class DIntegratorF
DIntegratorF is part of the WaveTrain system class library

Implement a discrete integrator using a discrete transfer function approach.

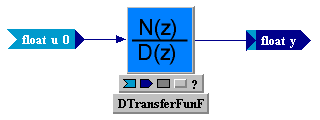

Tempus Block Diagram Editor Snapshot
Parameters
sampleTime  double   Time interval between samples in seconds   1
priority  int   Execution priority   0
Inputs
u  float   Input   0
Outputs
y  float   Output
Subsystems

Subsystem icon
  DTransferFunF    dtransferfunf
numerator  Vector<float>   VecF(1,(float)sampleTime)
denominator  Vector<float>   VecF(2,1.0,-1.0)
sampleTime  double   sampleTime
priority  int   priority


Connections
dtransferfunf.u  <<=  u
y  <<=  dtransferfunf.y
Last Saved: Thu Jul 19 21:40:53 MDT 2001 by TVE version 2007B
