tempus System Class WFSandRecon

Interface

Parameters
dmModel	DMModel&
propnxy	int
propdxy	float
wfs_wavelength	float
wfs_nsample	int
wfs_ifov	float
wfs_interval	double		1.0/2500.0
Inputs
incident	WaveTrain
on	bool		true
Outputs
commands	Vector<float>	Actuator commands (m)

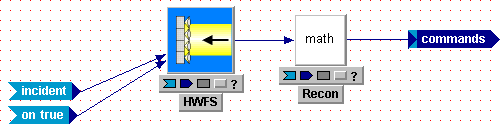

Implementation

Subsystems
HartmannWfsDft    HWFS	Wave optics wavefront sensor
name type value wavelength   float    wfs_wavelength nxyPupil   int    propnxy dxyPupil   float    propdxy nxyDetector   int    wfs_nsample*16*17 + 1 dxyDetector   float    wfs_ifov / wfs_nsample subapWidth   float    dmModel.xMeasurementWidth() detectorPlaneDistance   float    1.0 focalDistance   float    1.0 magnification   float    wfs_ifov*16.0 / dmModel.xMeasurementWidth() overlapRatio   float    0.0 xSubap   Vector<float>    dmModel.xMeasurementLocations() ySubap   Vector<float>    dmModel.yMeasurementLocations() xSlope0   float    0.0 ySlope0   float    0.0
Recon    recon
name type value dmModel   DMModel&    dmModel

Connections
HWFS.incident	<<=	incident
HWFS.on	<<=	on
commands	<<=	recon.commands
recon.slopes	<<=	HWFS.slopes
