OpdMap models the optical effects of a transverse OPD (phase) map, which is applied to both incoming and outgoing light. The OPD map is allowed to be time-varying. The OPD map is specified in DISTANCE units (m), which the module will convert to phase lags that depend on the wavelength of the passing wave(s).
The OPD map is specified by an input of type Grid<float>. See the WT User Guide for methods of creating and inputting Grid data types.
There is a related module, called FixedOpdMap, which can be used if the transverse OPD map is constant in time. The only difference between the two modules is that the map is entered as an input in the present module, but as a parameter in the other.

Parameters
None

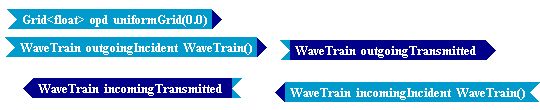

Inputs
opd	Grid<float>	transverse OPD (optical path difference) map in meters, added to outgoing wavefronts, subtracted from incoming wavefronts	uniformGrid(0.0)
incomingIncident	WaveTrain	describes all light incident from the "incoming" direction	WaveTrain()
outgoingIncident	WaveTrain	describes all light incident from the "outgoing" direction	WaveTrain()
Outputs
incomingTransmitted	WaveTrain	describes all light transmitted in the "incoming" direction
outgoingTransmitted	WaveTrain	describes all light transmitted in the "outgoing" direction
Subsystems
Last Saved: Thu Mar 15 21:31:17 MDT 2007 by TVE version 2007B
