tempusSystem Class TwoLens

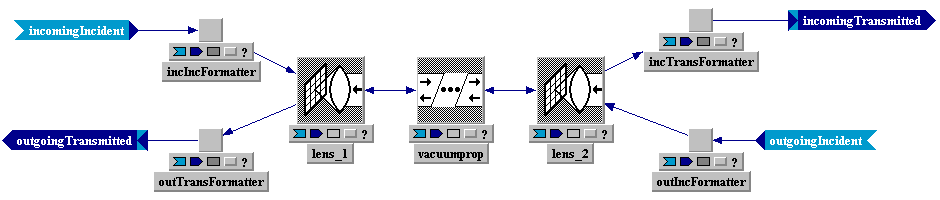

TwoLens is part of the WaveTrain system class library Parameters f_1   float    Focal length of the first lens (m)    1.0 z_1_2   float    Separation of the two lenses (m)    2.0 f_2   float    Focal length of the second lens (m)    1.0 Inputs incomingIncident   WaveTrain    Incoming incident WaveTrain    WaveTrain() outgoingIncident   WaveTrain    Outgoing incident WaveTrain    WaveTrain() Outputs incomingTransmitted   WaveTrain    Incoming transmitted WaveTrain     outgoingTransmitted   WaveTrain    Outgoing transmitted WaveTrain     Subsystems   WaveTrainFormatter    incIncFormatter defaultGeometry   GridGeometry    GridGeometry()   Focus    lens_1   WaveTrainFormatter    outTransFormatter defaultGeometry   GridGeometry    GridGeometry()   WaveTrainFormatter    outIncFormatter defaultGeometry   GridGeometry    GridGeometry()   WaveTrainFormatter    incTransFormatter defaultGeometry   GridGeometry    GridGeometry()   Focus    lens_2   VacuumProp    vacuumprop Connections outIncFormatter.incident   <<=   outgoingIncident incIncFormatter.incident   <<=   incomingIncident incomingTransmitted   <<=   incTransFormatter.transmitted outgoingTransmitted   <<=   outTransFormatter.transmitted lens_1.incomingIncident   <<=   incIncFormatter.transmitted outTransFormatter.incident   <<=   lens_1.outgoingTransmitted incTransFormatter.incident   <<=   lens_2.incomingTransmitted lens_2.outgoingIncident   <<=   outIncFormatter.transmitted vacuumprop.incomingIncident   <<=   lens_1.incomingTransmitted vacuumprop.outgoingIncident   <<=   lens_2.outgoingTransmitted lens_2.incomingIncident   <<=   vacuumprop.incomingTransmitted lens_1.outgoingIncident   <<=   vacuumprop.outgoingTransmitted Last Saved: Wed Sep 04 14:34:04 MDT 2002 by TVE version 2007B
